Brief Introduction

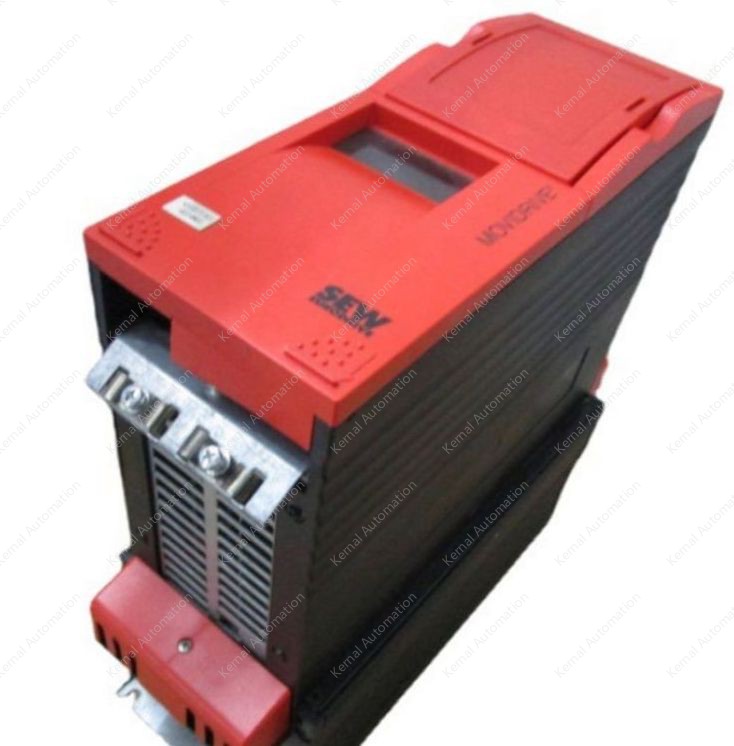

MDX61B0055-5A3-4-00

Basic parametersRated power: 5.5kW.Input parameters: The rated voltage is 3-phase AC 380 - 500V, the power supply frequency is 50 - 60Hz, and the input current is about 12.5A.Output parameters: output capacity of about 9.2kVA, output current of 12.5A, output frequency range of 0 - 599Hz.Overload capacity: 150% overload allowed for 60s, 175% overload allowed for 2s.Degree of protection: IP20.Dimensions: 105mm wide, 335mm high, 294mm deep.Weight: 6.6kg.Control functionsControl mode: Support voltage vector control (VFC), current vector control (CFC), etc., to achieve high-precision control of the motor.Built-in functions: Integrated IPOS positioning and sequence control system for speed control, single-axis position control, and more. Drive tasks such as positioning and curling can be completed through standardized control programs, and the user can set parameters through a wizard without complex programming.
