Brief Introduction

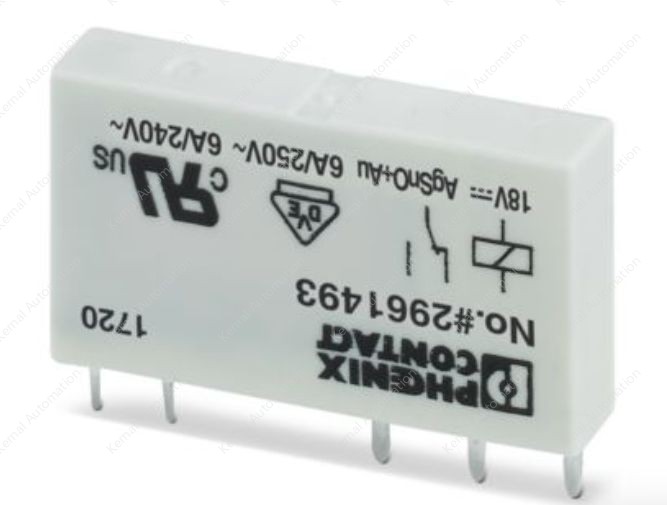

REL-MR-18DC/21AU

Product type: A single relay, which is a miniature power relay with plug-in connection for easy installation and maintenance.Electrical characteristicsInput data: The input voltage is rated at 18V DC and the input voltage range is 10.8V DC to 49.5V DC. The drive is monostable and non-polarized, with a typical input current of 9mA, a typical response time of 5ms, a typical release time of 2.5ms, a coil resistance of 1906Ω±10% at 20°C, and a maximum power consumption of 0.16W at rated input voltage.Output data: 1 changeover contact of the contact switching type, single contact of the switching contact type, contact material of AgSnO, hard gold plating. Under normal conditions, the maximum switching voltage is 30V AC, 36V DC, the minimum switching voltage is 100mV (at 10mA), the limiting continuous current and the maximum inrush current are both 50mA, the minimum switching current is 1mA (at 24V), and the maximum power rating (resistive load) is 1.2W (24V DC). When the gold plating layer is destroyed, the maximum switching voltage is 250V AC/DC, the minimum switching voltage is 5V (at 100mA), the limited continuous current is 6A, the minimum switching current is 10mA (at 12V), and the maximum power rating value (resistive load) will change accordingly, such as 140W (24V DC), 20W (48V DC), 18W (60V DC), 23W (110V DC), 40W (220V DC), 1500VA (250V AC), The switching capacitances are 2A (at 24V, DC13), 0.2A (at 110V, DC13), 0.1A (at 220V, DC13), 3A (at 120V, AC15), 3A (at 230V, AC15).
