Brief Introduction

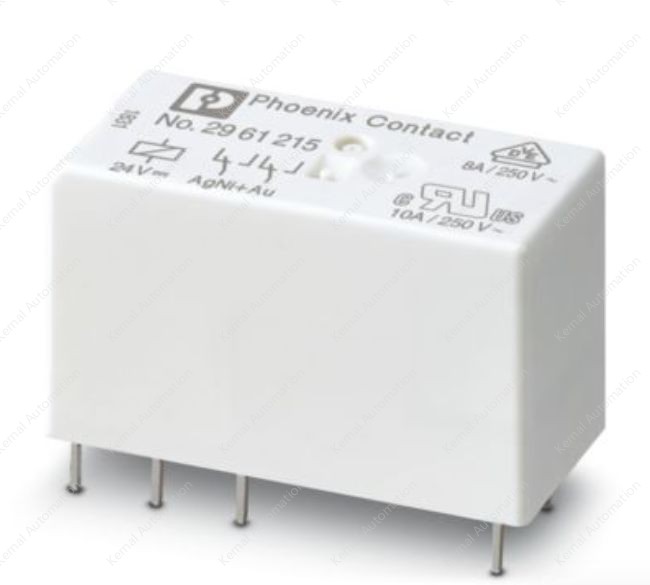

REL-MR-24DC/21-21AU

Product Type: Single Relay.Contact Information: With multi-layer gold contacts, 2 changeover contacts (DPDT), contact material is AgNi, hard gold plating.Electrical Characteristics:Input: Rated input voltage 24V DC, input voltage range 15.6V DC - 59.52V DC, monostable, non-polarized drive mode, typical input current 17mA at rated voltage, typical response time 7ms, typical release time 3ms, coil resistance 1440Ω±10% (at 20°C).Outputs: Maximum switching voltage 30V AC, 36V DC, minimum switching voltage 100mV (at 10mA), limited continuous current 50mA, maximum inrush current 50mA, minimum switching current 1mA (at 24V), switching capacity 2A (at 24V, DC13). When the gold layer is destroyed, the maximum switching voltage is 250V AC/DC, the continuous current is limited to 8A, the switching capacity is 2A (at 24V, AC15), etc.Connection: plugging / soldering connection
