Brief Introduction

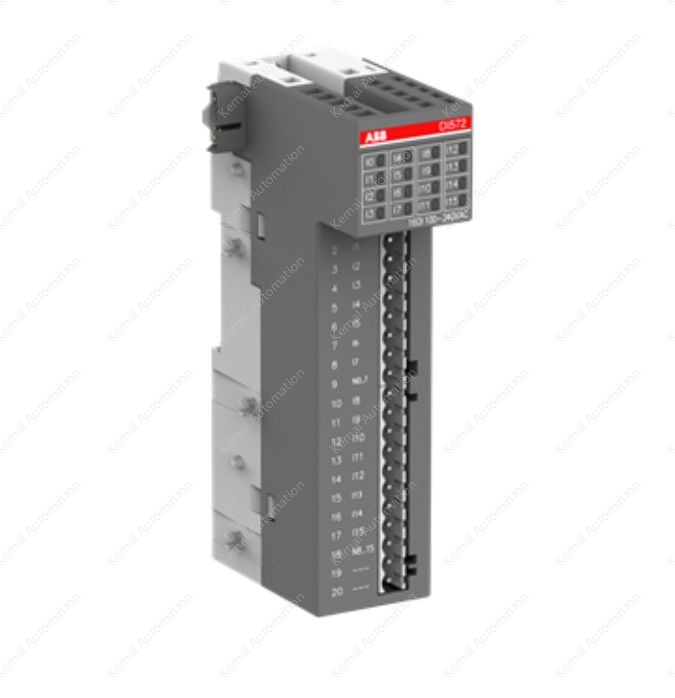

DI572

Number of input points: 16 digital input channels1.Input Voltage Type: AC, input voltage range from 100V AC to 240V AC1.Input current: Typically between 7mA (159V AC, 60Hz) per channel4.Input type: Type 14 according to EN 61131-2.Signal range: Signal 0(max.) is 20V AC; Undefined signal is 20V AC < U < 79V AC, and signal 1 (min.) is 79V AC4. Input Delay: 15ms typical for Signal 0 -> 1; Signal 1 -> 0 typically has a 30ms4.Isolation characteristics: Channels are galvanically isolated from the rest of the module, with 16 isolation groups of 1 channel each.Power Consumption: The current consumption from a 24V DC power supply is approximately 15mA.Connection Type: Pluggable.Degree of protection: IP204.Operating temperature: 0°C to +60°C; Storage temperature - 40 ° C to + 70 ° C.Humidity: 0 to 95% RH, non-condensing.Vibration resistance: 0.5g rms, 10 to 500Hz.Shock resistance: 15g, 11ms half sinusoid.Each channel has 1 yellow LED that lights up when the input signal is high (signal 1).
